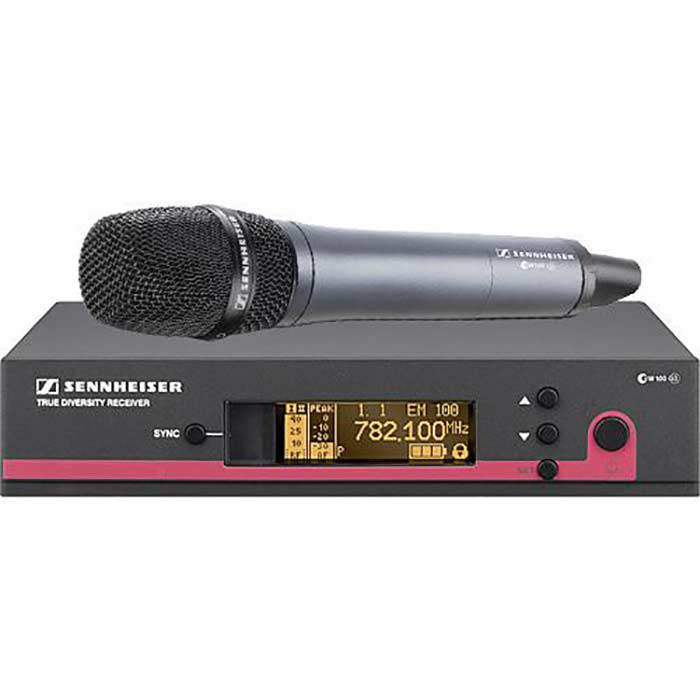

sennheiser ew135g3

TECHNICAL DATA

• Frequency range

  606...648 Mhz
  925...937.5 MHz / Korea
  823...865 MHz / Power supply unit UK
  823...865 MHz / Power supply unit EU/Germany
  823...865 MHz / Power supply unit EU
  780...822 MHz / Power supply unit UK
  780...822 MHz / Power supply unit EU/Germany
  780...822 MHz / Power supply unit EU
  734...776 MHz / Power supply unit UK
  734...776 MHz / Power supply unit US
  734...776 MHz / Power supply unit EU
  626...668 MHz / Power supply unit UK
  626...668 MHz / Power supply unit US
  626...668 MHz / Power supply unit EU
  566...608 MHz / Power supply unit UK
  566...608 MHz / Power supply unit US
  566...608 MHz / Power supply unit EU
  516...558 MHz / Power supply unit US
  516...558 MHz / Power supply unit EU

• Dimensions

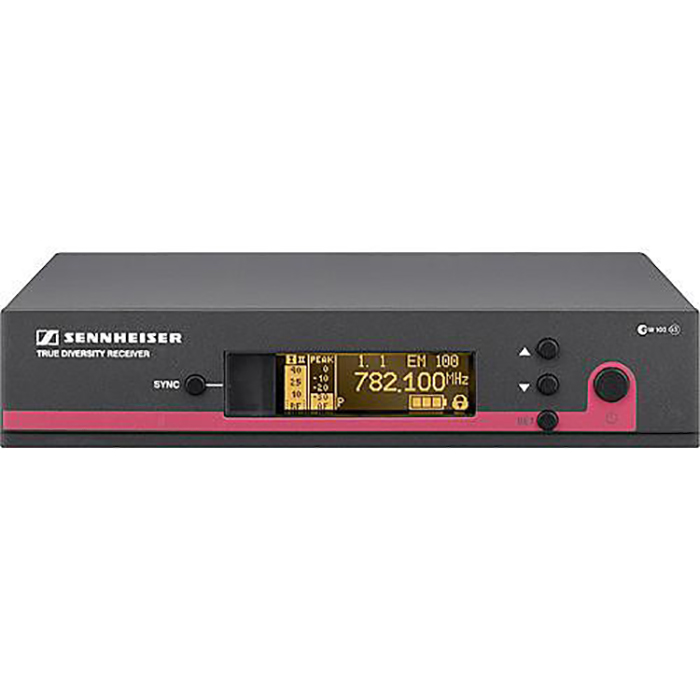

  Receiver: 82 x 64 x 24 mm

• Dimensions

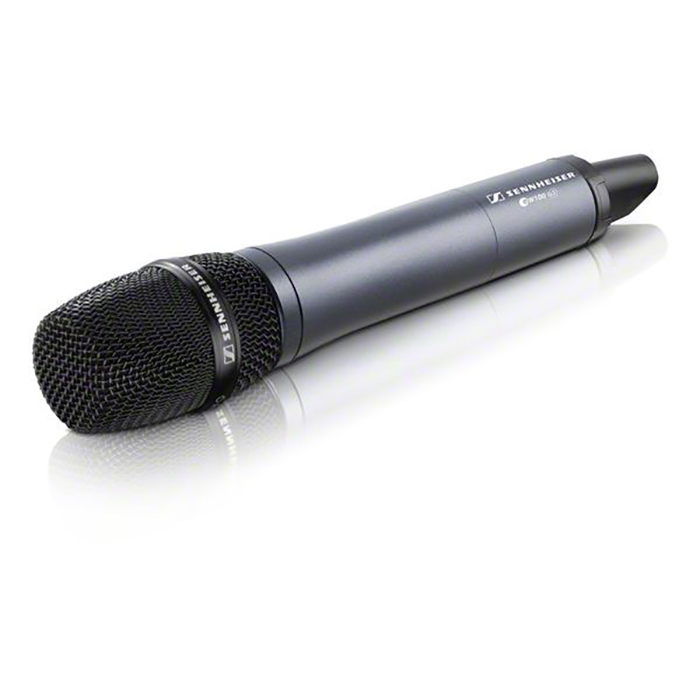

  Transmitter: Ø 50 x 265 mm

• • Frequency response (microphone)

    80 - 18000 Hz

  • Compander

    HDX

  • Audio-XLR connector

    3,5 mm jack

  • Presets

    12

  • Microphone

    dynamic

  • Sound pressure level (SPL)

    154 dB(SPL) max.

  • THD, total harmonic distortion

    < 0,9 %

  • Weight

    Receiver: ~ 980 g

  • Weight

    Transmitter: 450 g

  • Pick-up pattern

    cardioid

  • AF sensitivity

    2,1 mV/Pa

  • Signal-to-noise ratio

    > 110 dB(A)

  • RF frequency range

    516...865 MHz

  • RF output power

    30 mW

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Operating time

    Transmitter: > 8 h

  • Antenna connector

    2 BNC, 50 Ω

  • Audio output level (balanced)

    XLR : +18 dBu max

  • Audio output level (unbalanced)

    Jack : +10 dBu max
