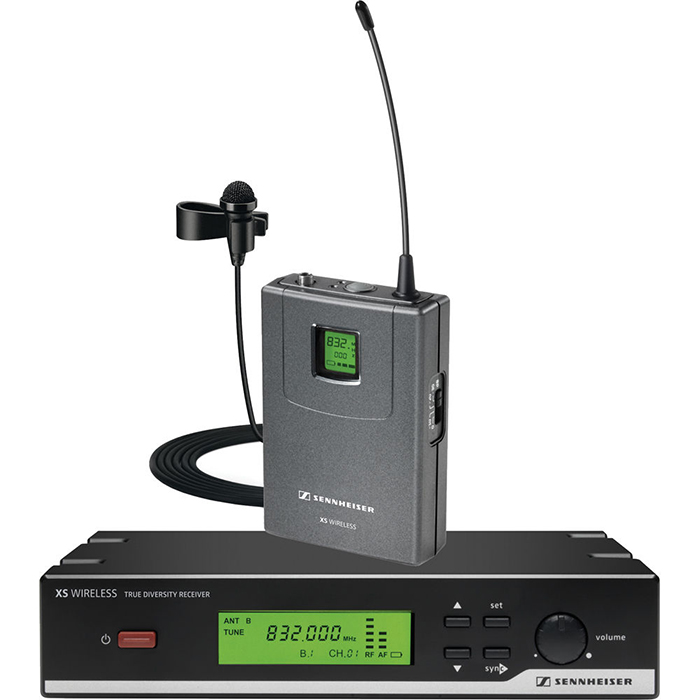

Sennheiser xsw12

TECHNICAL DATA

• RF frequency range

  821...832 MHz / 863...865 MHz
  766...790 MHz
  614...638 MHz
  606...630 MHz
  548...572 MHz
  548...865 MHz

• Presets

  12

• THD, total harmonic distortion

  < 1 %

• • Signal-to-noise ratio

    > 103 dB(A)

  • Transmission/receiving frequencies

    960 (520 in range E)

  • Switching bandwidth

    24 MHz (13 MHz range E)"}

Receivers

• Dimensions

  200 x 127 x 42 mm

• Weight

  ~ 730 g

• Antenna connector

  2x BNC, 50 Ohm

• • Audio output level (balanced)

    XLR : +14 dBu max

  • Audio output level (unbalanced)

    Jack : +8 dBu max

  • Diversity reception

    True Diversity

Transmitter

• Dimensions

  96 x 66 x 24 mm

• Frequency response

  mic.: 100 - 16000 Hz

• Frequency response

  line: 60 - 16000 Hz

• • Weight

    ~ 95 g

  • RF output power

    typ. 10 mW

  • Operating time

    10 h

  • Power supply

    2x AA batteries

  • Input voltage range

    0,5 Vrms

Clip-on microphone

• Microphone

  permanent polarized

• Sound pressure level (SPL)

  142 dB

• Transducer principle

  permanently polarised condenser microphone

• • Pick-up pattern

    omni-directional

  • AF sensitivity

    5 mV/Pa
