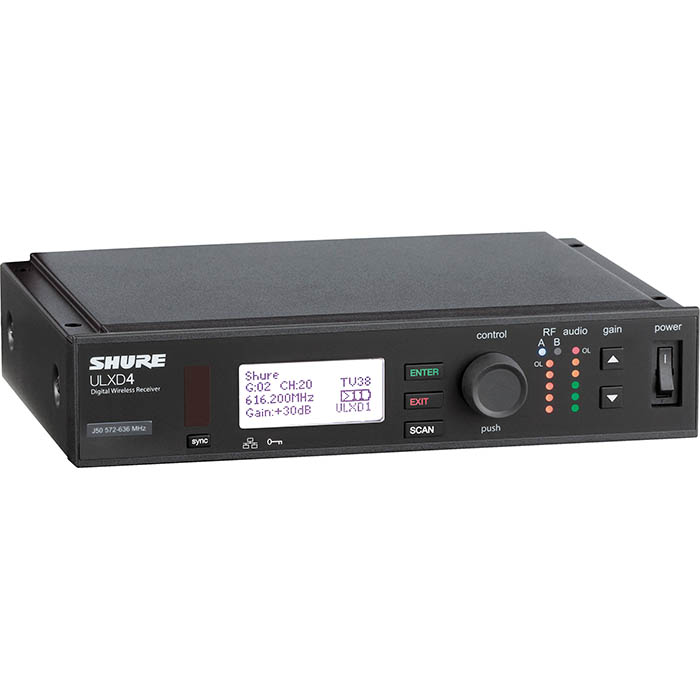

ส่วนรับสัญญาณ ULXD4

  • ช่องสัญญาณเลือกได้ 67 ช่อง
  • สามารถ Setup ด้วยระบบ Network ได้
  • มีระบบการเข้ารหัส AES 256-bit
  • สามารถค้นหาความถี่แบบอัตโนมัติได้
  • สัญญาณครอบคลุม 328 ฟุต ( 100 เมตร )
  • เทคโนโลยีเชื่อมต่อแบบสแกน ประหยัดเวลาในการติดตั้ง
  • ช่องเอ้าท์พุท XLR และ 1/4" Jack
  • น้ำหนัก 913 กรัม

ไมค์มือถือ ULXD2 With SM58

  • ใช้ถ่านแบบ 2 A (AA)
  • ปุ่มเปิด/ปิด อยู่ตรงกลาง
  • มีจอ LCD แสดงสถานะ การใช้งานและแบ็ตเตอรี่
  • น้ำหนัก 340 กรัม

Regular Price: 109,000

Special Price 65,900 บาท

In Stock

Uncompromising Professional Digital Wireless

  • 24-bit/48 kHz digital audio that delivers incredibly clear and accurate reproduction of the source material
  • 20 Hz – 20 kHz Read moreGo to the glossary" data-original-title="">frequency range with flat response
  • Greater than 120 dB Read moreGo to the glossary" data-original-title="">dynamic range through the analog outputs
  • 130 dB Read moreGo to the glossary" data-original-title="">dynamic range (typical) using Dante™digital networked audio
  • 60 dB of adjustable system gain easily accessible from the receiver front panel
  • No transmitter gain adjustments needed - optimized for any input source
  • Wide selection of trusted Shure Microphones

Extremely Efficient and Reliable RF Performance

  • Up to 72 MHz overall tuning range (region dependent)
  • Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
  • High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
  • Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied ½ wave antennas
  • Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5x the analog RF output power equivalent)
  • Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available

Scalable, Intelligent Hardware

  • Single (half-rack), Dual and Quad (full-rack) receiver form factors for any size installation
  • AES 256-bit encryption equipped for secure wireless transmission
  • Ethernet networking for streamlined setup across multiple receivers
  • Wireless Workbench® 6 software compatible for advanced Read moreGo to the glossary" data-original-title="">frequency coordination, monitoring, and control
  • AMX/Crestron control
  • AXT600 Axient™ Spectrum Manager compatibility
  • Rugged metal housing on both transmitters and receiver
  • Dual and Quad receivers additionally feature:
    • RF cascade ports, internal power supply, and dual Ethernet ports
    • DANTE™ digital networked audio over Ethernet
    • Bodypack Read moreGo to the glossary" data-original-title="">Frequency Diversity ensures uninterrupted audio for mission-critical applications.
    • Audio summing routes audio signal to multiple outputs

Shure Advanced Power Management

  • Adapted from industry-leading Axient™ rechargeable technology
  • Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering.
  • Provides ULX-D transmitters with unmatched 11+ hours of performance time
  • Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
  • AA backwards compatibility

System technical specifications

  • Compatible systems per Read moreGo to the glossary" data-original-title="">frequency band: 67
  • Auto Setup Features: Scan/Group Scan/Sync
  • Read moreGo to the glossary" data-original-title="">Audio Reference Companding: No
  • Included Antennas: Remoteable 1/2-wave
  • Antenna Options: Yes
  • PC Control: Yes
  • Receiver Network Ability: WWB6
  • Rack Hardware: Included
  • Case: No
  • Transmitter Display: Backlit multi-function LCD
  • Receiver Display: Backlit multi-function LCD + LEDs
  • Battery, Endurance: @ 10 mW, SB900: >12 h / 2AA Alkaline: 11 h
  • Environment: Conference centre, hotel, house of worship, schools

Further Technical Specs

RF Carrier Range Q51 794–806 MHz, varies by region
RF Tuning Step Size 25 kHz, varies by region
RF Sensitivity -98 dBm at 10-5 BER
Audio Frequency Response ULXD1: 20 Hz – 20 kHz (±1 dB)
ULXD2: 30 Hz – 20 kHz (±1 dB)
Note: Dependent on microphone type
Total Harmonic Distortion
−12 dBFS input, System Gain @ +10
Operating Temperature Range -18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
